SKU: 190-0200

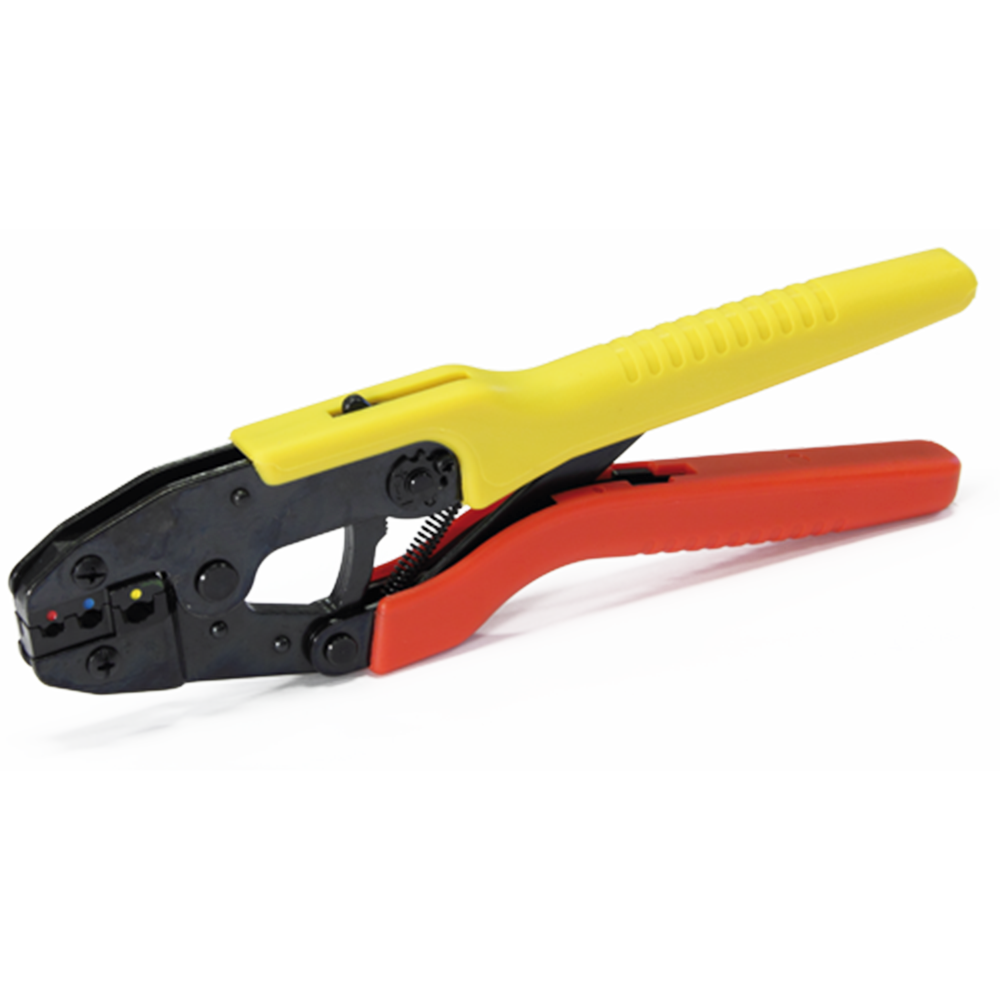

Crimping Tool for Insulated Cable Lugs 0.5–6 mm²

Professional ratchet crimping tool for insulated terminals – efficient and ergonomic crimping.

Need a reliable crimping tool for automotive and electrical installations?

This high-quality crimping tool allows you to crimp both the conductor and insulation in a single operation – fast, safe, and with consistent results thanks to its preset tension mechanism. Designed for professional users and workshops that demand precise and durable cable processing.

Key benefits:

  • Ergonomic design reduces strain on hands and joints
  • 33% less effort required during use
  • Crimps conductor and insulation in one step – saves time and increases efficiency
  • Built-in ratchet mechanism ensures a complete crimp every time
  • Locator for accurate positioning of the terminal
  • Oval crimp shape provides a strong and secure electrical connection
  • Rugged construction for long service life and consistent performance
  • Suitable for insulated cable lugs 0.5–6 mm² (red, blue, yellow insulation)

699,00 kr 559,20 kr

Reviews

There are no reviews yet.

Be the first to review “Crimping Tool for Insulated Cable Lugs 0.5–6 mm²”

Related products

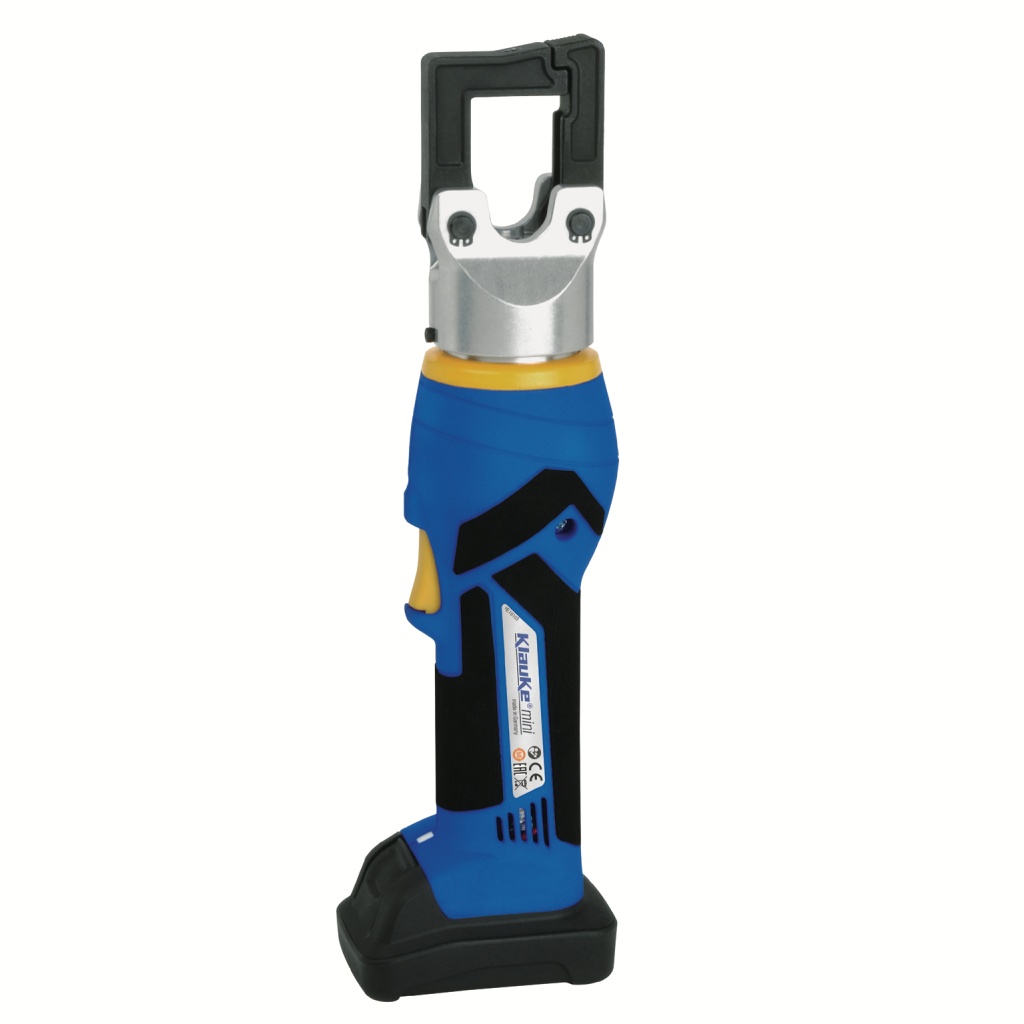

Compact, Powerful, and Intelligent Crimping up to 150 mm²

Professional cordless crimping system for tubular cable lugs – power and precision for field and workshop use

Need a compact yet powerful crimping tool for demanding electrical installations?
Read more

Precision, Speed, and Versatility for 0.14–50 mm²

Smart battery-powered crimping tool with PowerSense technology – designed for maximum efficiency in installation work.

Need a lightweight, fast, and precise crimping tool for small and medium cable sizes?
Read more

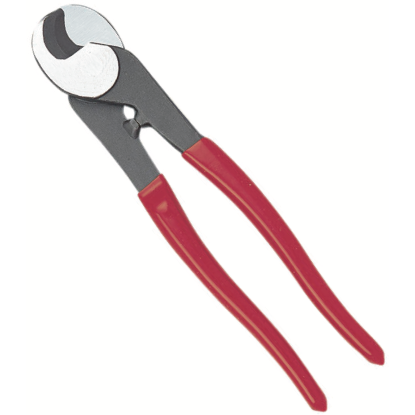

Razor-sharp precision for clean and powerful cable cutting

Looking for a professional-grade tool that delivers clean, effortless cuts without damaging the conductor?

This Professional Cable Cutter, made from forged carbon steel, combines outstanding strength with exceptional sharpness – perfectly engineered for copper and aluminum cables up to 25 mm².

199,00 kr 159,20 kr
Add to cart

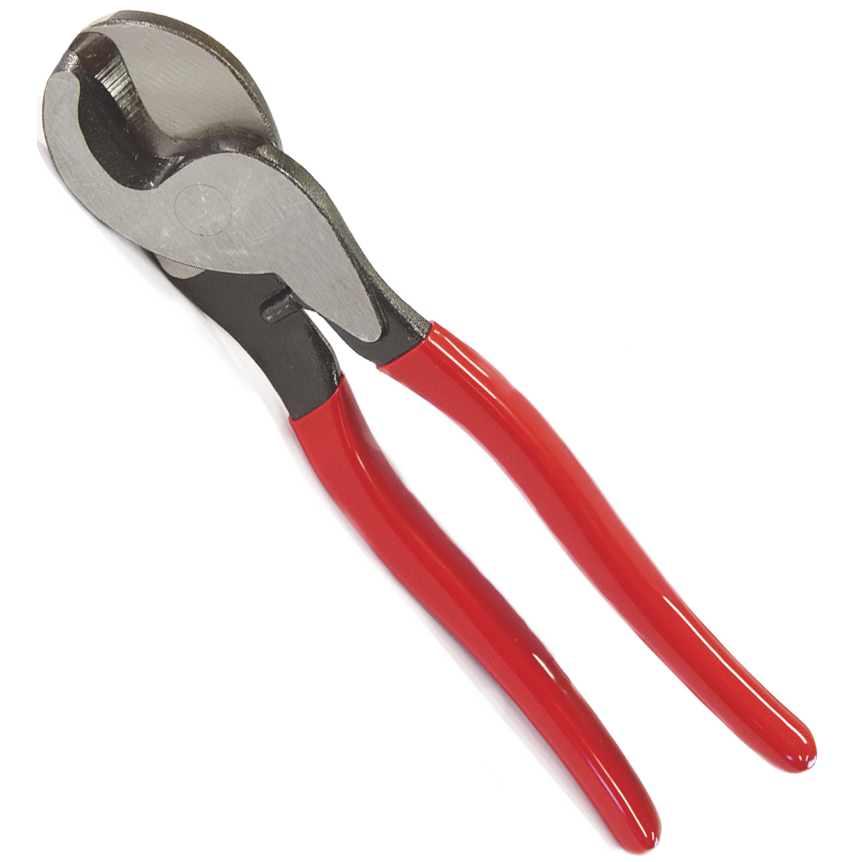

Razor-sharp precision for clean and powerful cable cutting

Looking for a professional-grade tool that delivers clean, effortless cuts without damaging the conductor?

This Professional Cable Cutter, made from forged carbon steel, combines outstanding strength with exceptional sharpness – perfectly engineered for copper and aluminum cables up to 95 mm².

289,00 kr 231,20 kr
Add to cart

Professional hexagonal crimping dies for tubular cable lugs – precision, strength, and perfect fit for Skyllermarks cable lugs.

Need high-quality crimping dies for your Klauke EK 35/4 ML battery-powered crimping tool?
Select options This product has multiple variants. The options may be chosen on the product page

Razor-sharp precision for clean and powerful cable cutting

Looking for a professional-grade tool that delivers clean, effortless cuts without damaging the conductor? This Professional Cable Cutter, made from forged carbon steel, combines outstanding strength with exceptional sharpness – perfectly engineered for copper and aluminum cables up to 120 mm².

399,00 kr 319,20 kr
Add to cart

Technical information

  • Crimp range for red terminals: 0.5–1.5 mm²
  • Crimp range for blue terminals: 1.5–2.5 mm²
  • Crimp range for yellow terminals: 4.0–6.0 mm²
  • Crimping type: Oval
  • Total length: 250 mm
  • Handle: Insulated – color may vary
  • Tool type: Ratchet crimping tool with built-in release mechanism

Wired and Inspired

Why doesn’t the cable lug stay attached after crimping?

If the cable lug doesn’t stay firmly attached after crimping, it’s rarely due to the crimping tool. In most cases, the problem lies in the quality of the terminal itself.

Thinner material = weaker crimp

Low-cost terminals are often made with very thin metal walls. This prevents proper deformation during crimping and results in:

  • Poor electrical contact
  • Increased heat build-up
  • Risk of the terminal loosening under vibration

A proper crimp requires a terminal barrel with sufficient wall thickness to form tightly around the conductor, ensuring both mechanical strength and electrical reliability.



Solution: Use high-quality cable lugs

To avoid these problems, always use terminals from reputable manufacturers with reliable quality control. These provide:

  • Correct material thickness
  • Consistent form and dimensions
  • Greater reliability during both crimping and operation

While quality components may cost a little more, they ensure safer and more durable installations – especially in environments subject to vibration such as boats, vehicles, and motorhomes.
