SKU: 290-1000
SKU: 290-1000

Mini Volt Meter

Compact digital voltmeter for panel – blue LED display (12V / 24V)

Compact panel-mounted digital voltmeter with a clear blue 3-digit LED display for simple and accurate voltage monitoring.

Designed for use in both 12V and 24V DC systems and is ideal for installation in dashboards, control panels, and other electrical setups where the battery status needs to be clearly visible.

The display shows voltage with an accuracy of one decimal place, providing a precise and easy-to-read overview of the system voltage. The unit fits a standard 29 mm panel hole and is securely mounted from the rear using the threaded body and included retaining nut, ensuring a stable installation even in vibration-prone environments.
Key features:
  • Suitable for 12V and 24V DC systems
  • Clear blue 3-digit LED display
  • Voltage display with 0.1 V resolution
  • Fits standard 29 mm panel hole
  • Rear mounting with threaded body and retaining nut
  • Ideal for automotive, marine, campervan, and industrial applications

Fits in our panels.

Technical information

On demand

För tillfället slut i lager. Kontakta oss på för mer info.

Awaiting product image

Related products

Technical information



  • Supply voltage: 12/24 VDC (6–30V)
  • Operating temperature: -20˚ – 60˚C
  • Mounting hole: Ø 29–32 mm
  • Protection rating: IP65
  • Safety features:
    • Reverse voltage protection
    • Thermal overload protection
    • Short circuit protection
    • Protection against reverse polarity
  • Connection: 6.3 mm tab terminals
    • 2 pcs fully insulated female receptacles 1.5–2.5 mm2 included
  • Recommended connection cable: 2.5 mm2
  • Recommended fuse: 1 A
  • Color: Black
  • Display color: Blue

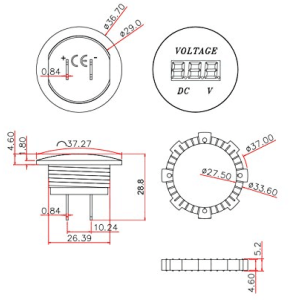

Skyllermarks panel mounted digital DC voltmeter round display
