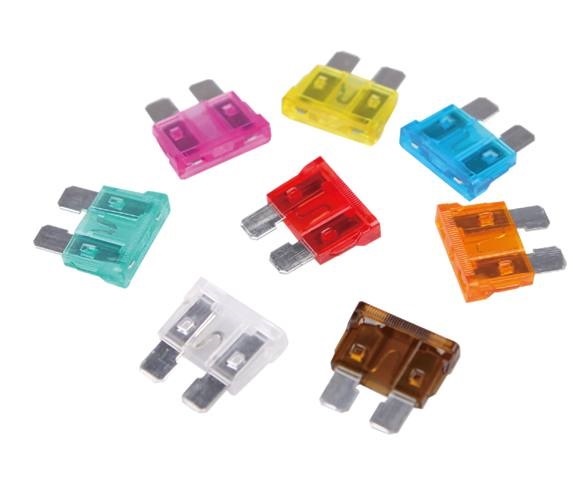

Blade Fuse Assortment 1–30 A

Reliable circuit protection for automotive and marine electrical systems

High-quality blade fuses of the ATO (ATOF) type – commonly known as automotive fuses.
Designed for 12 V and 24 V DC systems, these fuses fit directly into Skyllermarks fuse boxes and holders, providing safe and stable protection for all types of electrical loads.

The characteristics making it ideal for systems where operational stability is essential – such as in vehicles, boats, and off-grid power installations.

Key Benefits:

Direct fit in Skyllermarks fuse boxes – Ensures a secure and reliable connection
Durable construction – Long-lasting protection against overloads and short circuits
Versatile use – Suitable for automotive, marine, and off-grid DC systems

Contents:

Fuse ratings included:
1 A, 2 A, 3 A, 5 A, 7.5 A, 10 A, 15 A, 25 A, 30 A

10-pack: 1 piece of each fuse rating
20-pack: 2 pieces of each fuse rating

37,00 kr – 66,00 kr 29,60 kr – 52,80 kr

I lager

Packaging

Clear

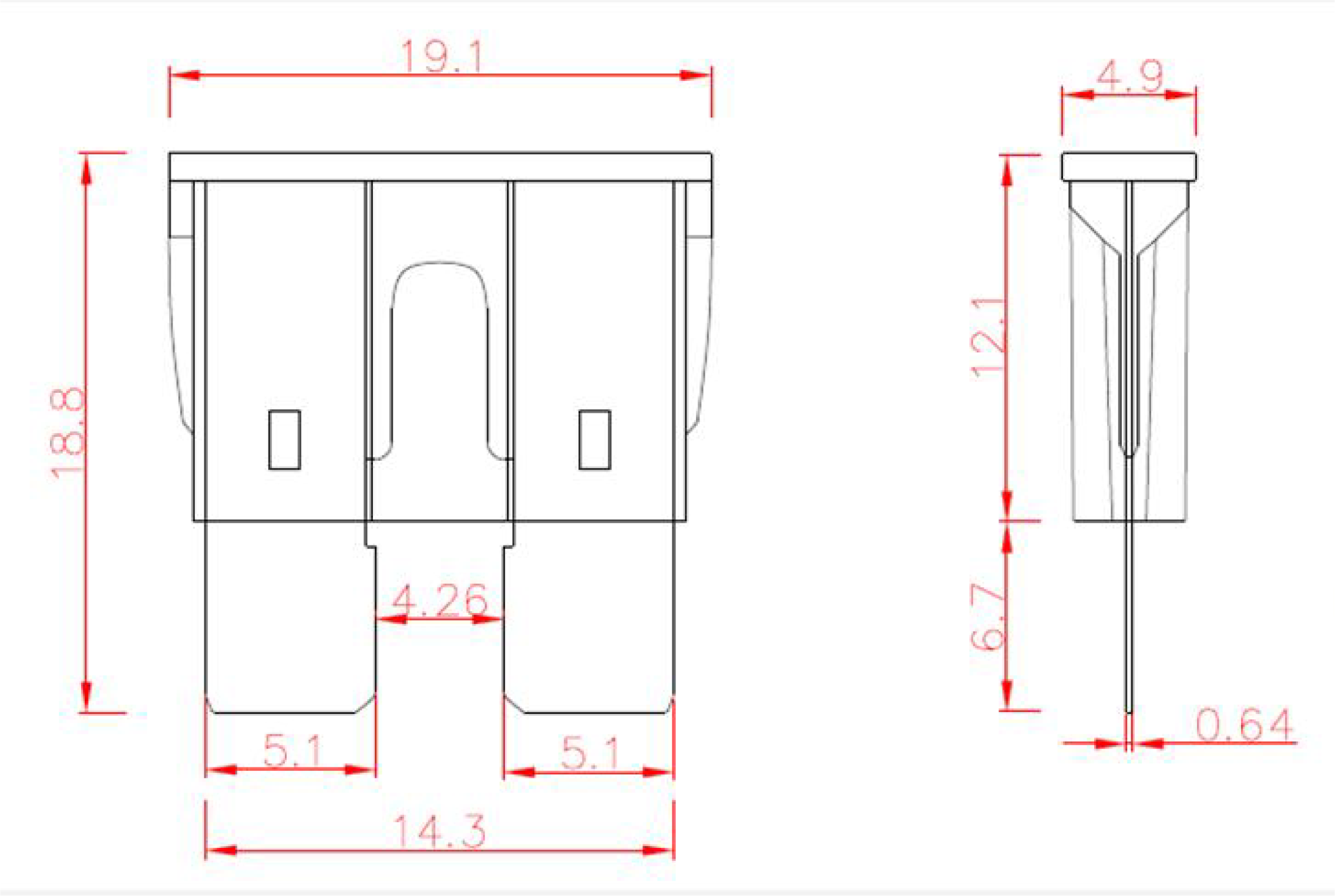

Dimension drawing for an ATO fuse showing mechanical dimensions in millimetres, including overall width, height, blade width and thickness.

Reviews

There are no reviews yet.

Be the first to review “Blade Fuse Assortment 1–30 A”

You must be logged in to post a review.

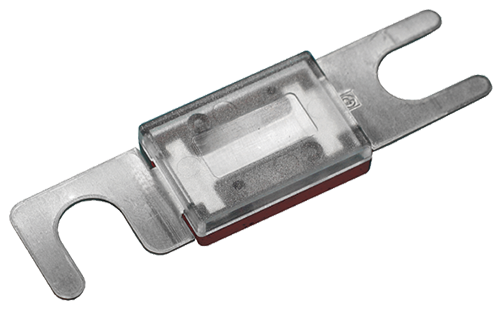

ANL-Type Main Fuse – Spark-Protected and Extremely Durable

Skyllermarks main fuse – built for maximum safety and reliability

The Skyllermarks ANL-type main fuse is designed to withstand harsh environments and meet the highest safety requirements in vehicles and marine installations. Its impact-resistant polycarbonate housing provides exceptional protection against mechanical stress, while the spark-protected design minimizes fire risk – a crucial safety feature in marine electrical systems.

110,00 kr – 120,00 kr 88,00 kr – 96,00 kr

See all variants

Blade Fuses – ATO (ATOF) Type

Fuses

Reliable circuit protection for automotive and marine electrical systems High-quality blade fuses of the MIDI / ATO (ATOF) type – commonly known as automotive fuses. Designed for 12 V and 24 V DC systems, these fuses fit directly into Skyllermarks fuse boxes and holders, providing safe and stable protection for all types of electrical loads.

10,00 kr – 18,00 kr 8,00 kr – 14,40 kr

See all variants

Technical information

Fuse material: Zinc alloy
Housing material: Plastic (Polycarbonate)
Maximum voltage: 32 VDC
Fuse types: ATO (ATOF)
Typical applications: Automotive, marine, industrial, and off-grid installations
Breaking Capacity: 1000A @ 32 VDC
