SKU: 116-3500V

Pre-pressed cable 35 mm²

Skyllermarks Pre-Crimped Cables – Maximum Durability and Flexibility

Looking for a cable that combines durability, high vibration resistance, and easy installation?
Skyllermarks pre-crimped cables are hex-crimped with 10 tons of pressure and equipped with double-annealed cable lugs and supporting heat shrink tubing.

The result is an easy-to-install cable with unmatched longevity and reliability – ideal for marine, industrial, and automotive applications.

The cable offers exceptional flexibility thanks to its extra fine-stranded conductor and robust Polychloroprene rubber (Neoprene) insulation, which is flame-retardant, oil-resistant, and denser than PVC. Each individual strand is tinned for maximum corrosion protection and long service life, even in demanding environments.

Key Benefits of Skyllermarks Pre-Crimped Cables:

  • Extra fine-stranded conductor for superior flexibility and easy installation
  • Neoprene rubber insulation – rugged, flame-retardant, and oil-resistant
  • Tinned copper strands for maximum corrosion protection
  • 10-ton hexagonal crimping for optimal contact pressure and conductivity
  • Heat shrink tubing for added protection and mechanical stability at the cable end



These cables are ideal for both fixed and flexible installations in harsh environments.

Technical information

In stock

Pre-pressed cable 35 mm²
Pre-pressed cable 35 mm² - Image 2

Reviews

There are no reviews yet.

Be the first to review “Pre-pressed cable 35 mm²”

Related products

RKKB cable ft 2 x 1.5 mm²

,
Tinned Mast & Installation Cable – Flexible and reliable cable for marine and mobile installations Do you need a durable and safe cable for your mast installation or other electrical systems in your boat, car or caravan? Our tinned double-insulated mast cable is designed to withstand harsh environments and high demands on durability and safety.
Select options This product has multiple variants. The options may be chosen on the product page

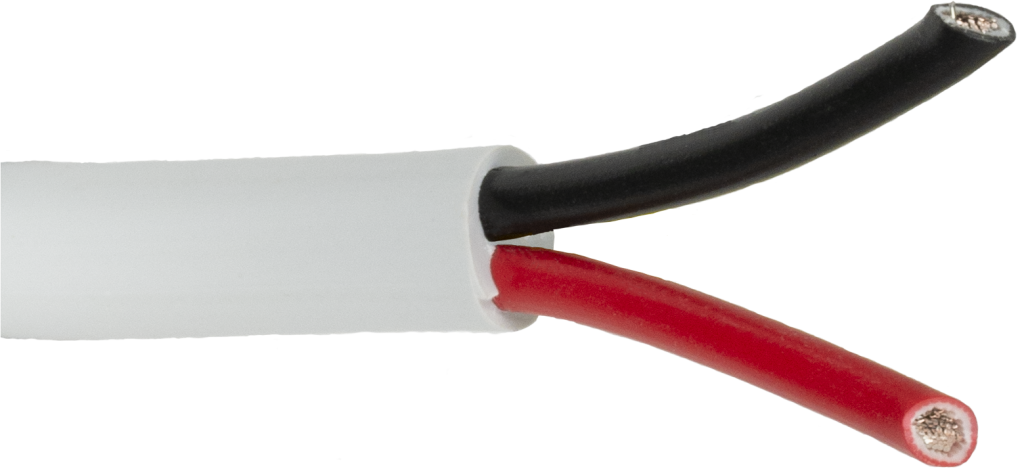

RKKB cable ft 2 x 2,5 mm²

,

Tinned Mast & Installation Cable – Flexible and Reliable Cable for Marine and Mobile Installations

Need a durable and safe cable for your mast installation or other electrical systems in boats, vehicles, or RVs? Our tinned, double-insulated mast cable is designed to withstand harsh environments and meet high standards of durability and safety.

Select options This product has multiple variants. The options may be chosen on the product page

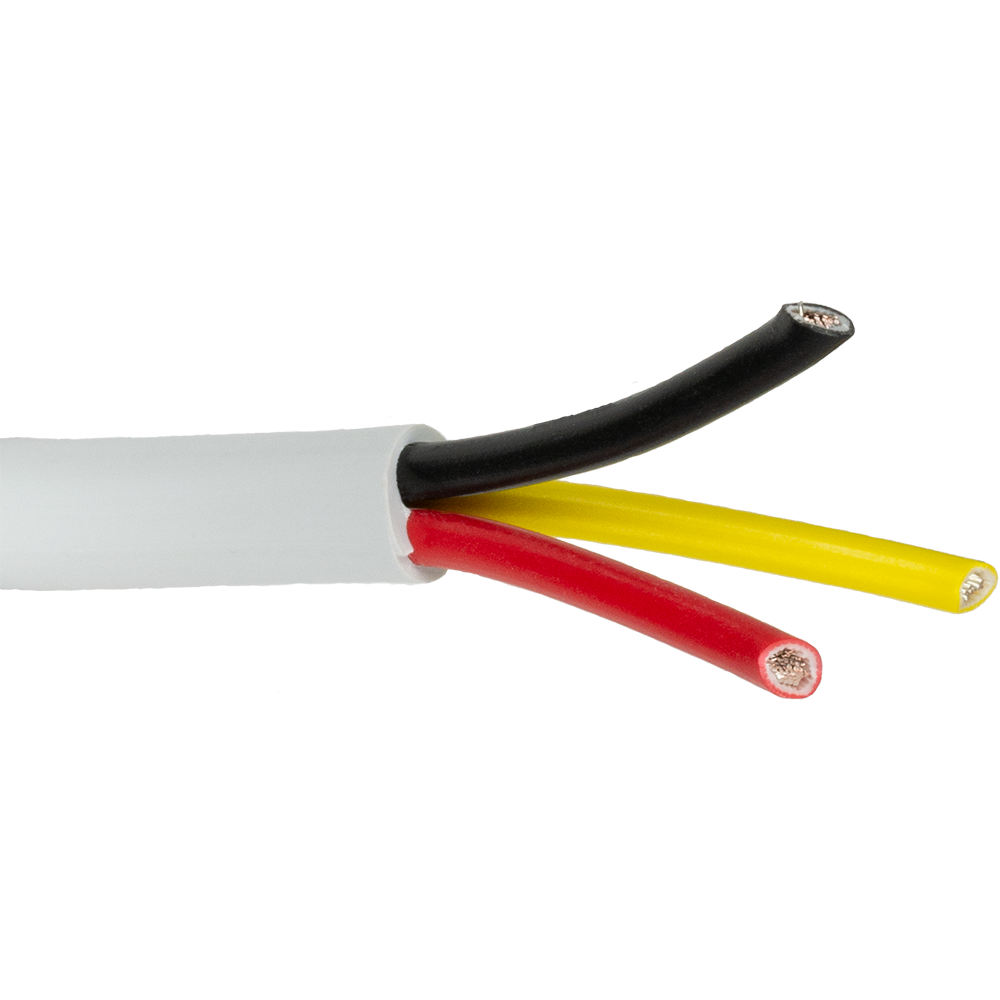

RKKB cable ft 3 x 1.5 mm²

,

Tinned Mast & Installation Cable – Flexible and Reliable Cable for Marine and Mobile Installations

Need a durable and safe cable for your mast installation or other electrical systems in boats, vehicles, or RVs? Our tinned, double-insulated mast cable is designed to withstand harsh environments and meet high standards of durability and safety.

Select options This product has multiple variants. The options may be chosen on the product page

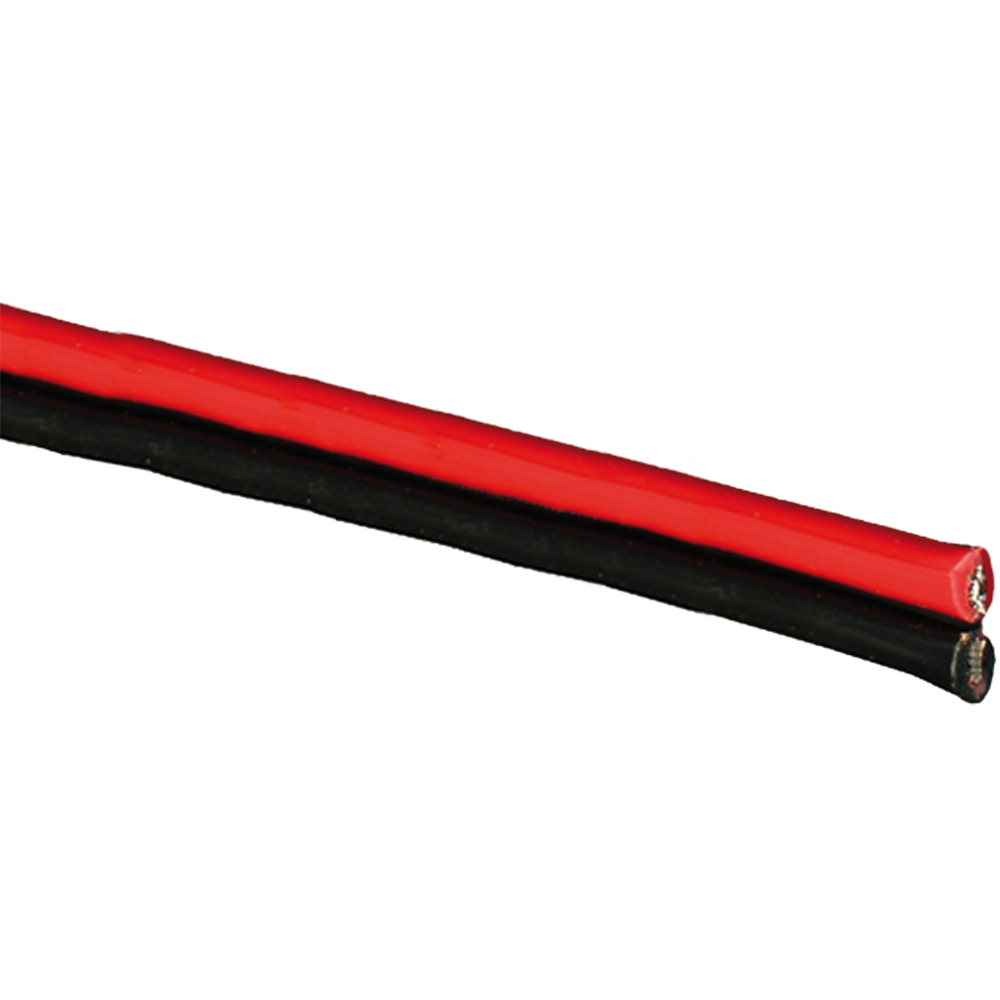

RKUB cable ft 2×0,75 mm²

,
Tinned Two-Core Copper Cable – Engineered for Vehicles and Demanding Installations Looking for a flexible and reliable cable for your vehicle or motorhome? This two-core PVC cable with tinned copper core is an excellent choice for simple electrical installations in vehicles and harsh environments. With conductors up to 2 x 6 mm², it offers both high performance and easy handling.
Select options This product has multiple variants. The options may be chosen on the product page

RKKB cable ft 3 x 2,5 mm²

,

Tinned Mast & Installation Cable – Flexible and Reliable Cable for Marine and Mobile Installations

Need a durable and safe cable for your mast installation or other electrical systems in boats, vehicles, or RVs? Our tinned, double-insulated mast cable is designed to withstand harsh environments and meet high standards of durability and safety.

Select options This product has multiple variants. The options may be chosen on the product page

RKUB cable ft 2×1.5 mm²

,
Tinned Two-Core Copper Cable – Engineered for Vehicles, Boats, and Demanding Installations Looking for a flexible and reliable cable for your boat or motorhome? This two-core PVC cable with tinned copper core is an excellent choice for simple electrical installations in vehicles and marine environments. With conductors up to 2 x 6 mm², it offers both high performance and easy handling.
Select options This product has multiple variants. The options may be chosen on the product page

Technical information

Cable Specification:

  • Outer sheath: Polychloroprene (Neoprene)
  • Conductor material: Tinned copper
  • Cable class: Class 6 (extra fine-stranded)
  • Number of strands: 1140
  • Strand diameter: 0.19 mm ±0.01
  • Minimum bending radius (fixed installation): 4 × D
  • Minimum bending radius (flexible installation): 5 × D
  • Temperature range (fixed installation): -40°C to +85°C
  • Maximum voltage: 100 V (test voltage: 1000 V)
  • Available colors: Black, Red, and Yellow
  • Flame-retardant, self-extinguishing, oil- and weather-resistant
  • Flame performance: According to IEC/EN 60332-1-2
  • Conductor construction: According to EN 50525-2-81
  • Compliance: IEC 60245-1
  • Certification: CE-approved



Tube Terminal Specification:

  • Material: Copper according to EN 13600 (Cu-DHP)
  • Annealing: Double-annealed
  • Surface treatment: Tinned



Heat Shrink Tubing Specification:

  • Shrink ratio: 2:1
  • Minimum shrink temperature: 100°C
  • Operating temperature range: -55°C to +125°C
  • Tensile strength (room temperature): min. 10.4 MPa, ≥12 MPa
  • Elongation at break (room temperature): min. 200%, ≥400%
  • Tensile strength after aging (175°C, 168 hrs): min. 7.28 MPa, ≥10.4 MPa
  • Elongation after aging (175°C, 168 hrs): min. 100%, ≥300%
  • Dielectric withstand voltage (unaged): Withstands 2.5 kV for 1 min without breakdown
  • Dielectric withstand voltage (aged): Withstands at least 50% of unaged breakdown voltage for 1 min without breakdown
  • Corrosion resistance (158°C, 168 hrs): No corrosion
  • Longitudinal shrinkage: ≤10%, ≤5%
  • Low-temperature flexibility (-55°C, 4 hrs): No cracking
  • Heat shock resistance (250°C, 4 hrs): No cracking
  • Dielectric strength: 19.7 kV/mm, >25 kV/mm
  • Volume resistivity: 10¹⁴ Ω·cm min., >10¹⁴ Ω·cm min.
  • Flame rating: VW-1
  • Material: Halogen- and cadmium-free polyolefin
  • Certifications: UL approved, REACH compliant, RoHS compliant

Wired and Inspired

Use Skyllermark pre-terminated cables when:

  • You need a flexible and durable cable for marine, automotive or industrial environments.
  • You want extra corrosion protection thanks to tinned glands and tinned lugs.
  • You want to ensure low resistance and reliable contact with professional hex crimping.


Remember:

  • The shrink tubing protects against moisture, vibration and mechanical wear.
  • the Neoprene rubber sheath of the cable is denser and more durable than PVC, providing longer life in harsh environments.
  • With Skyllermark’s pre-pressed cables, you get an installation that lasts – year after year!
