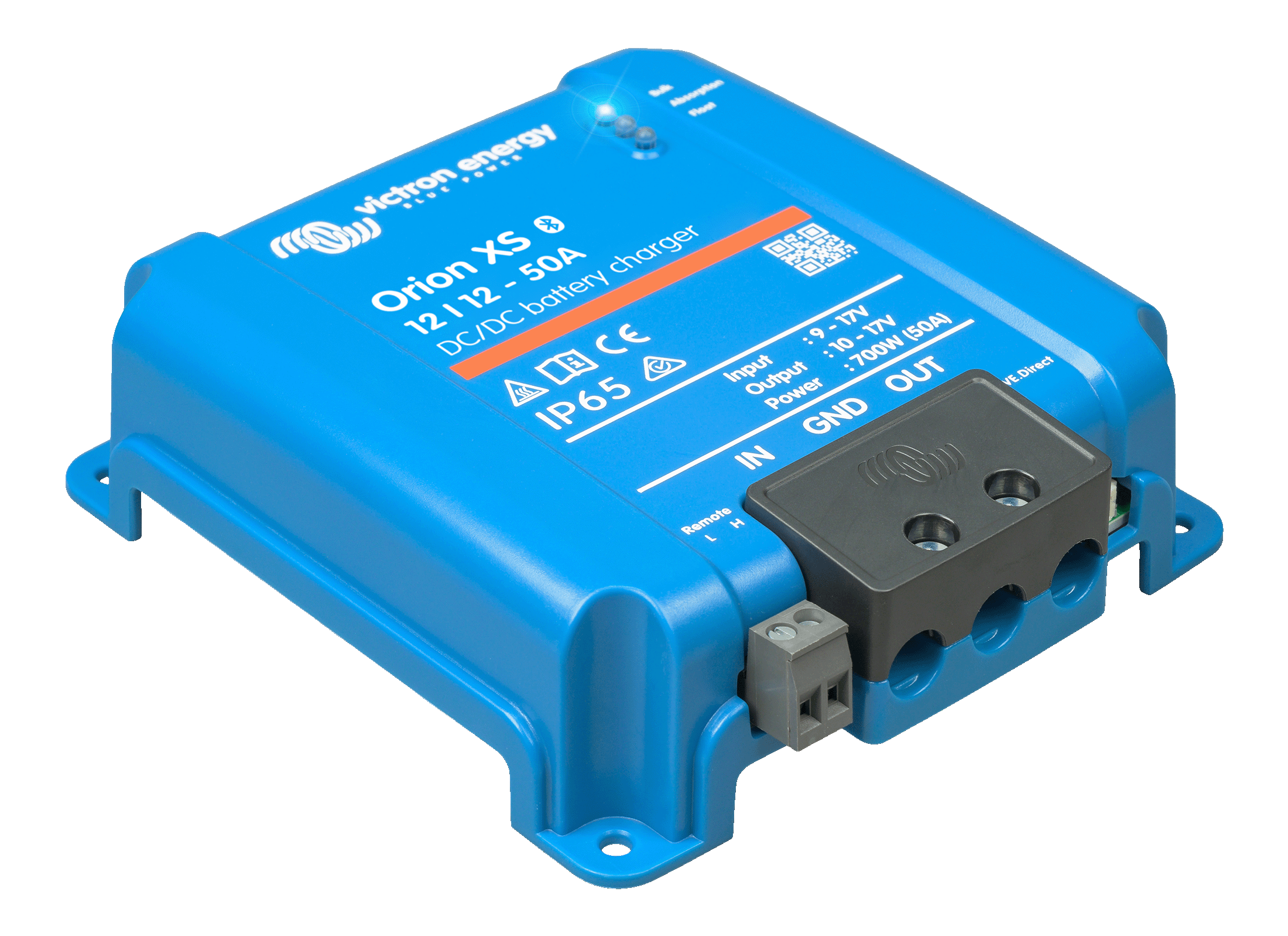

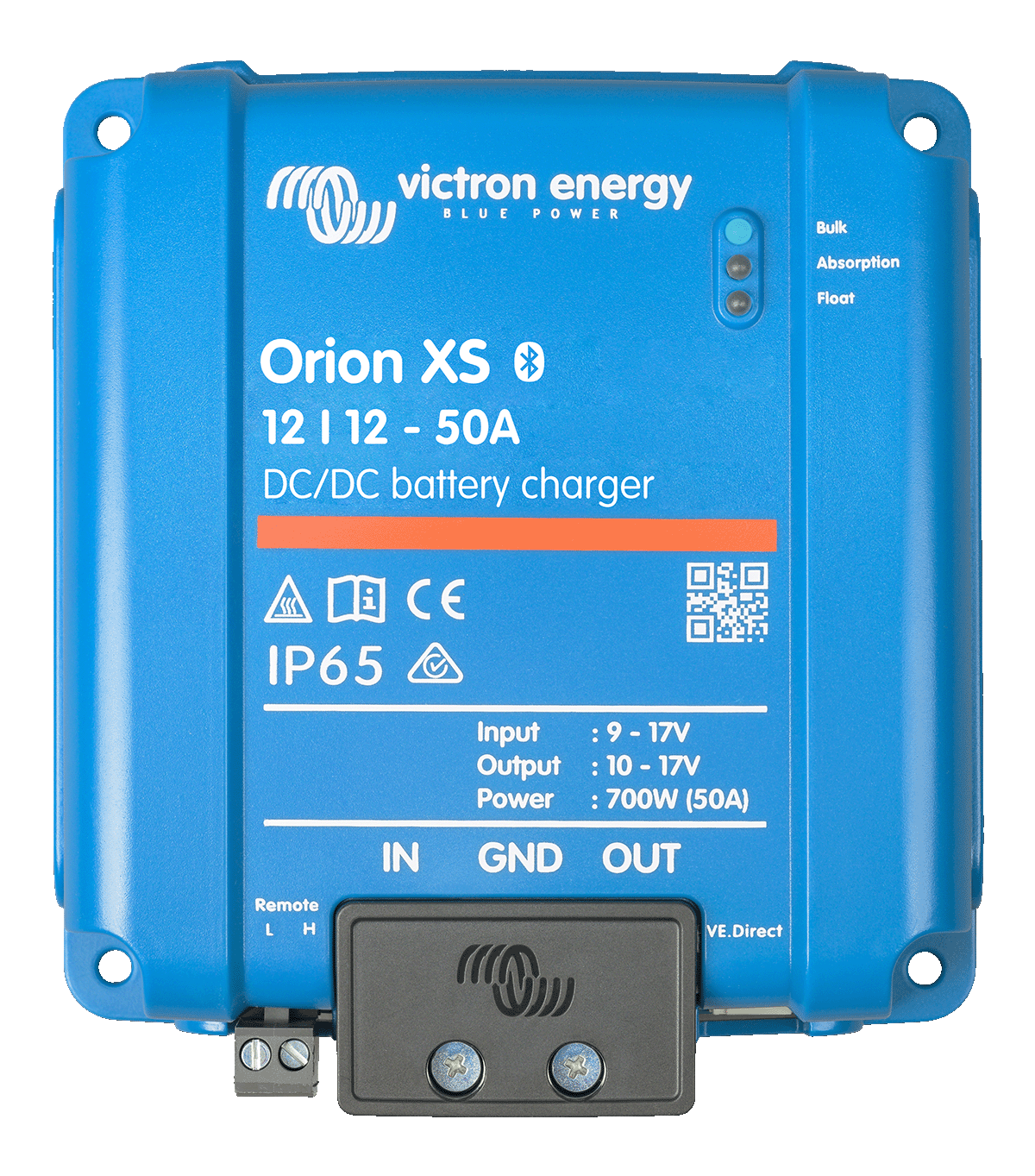

DC/DC charger – Orion XS 12/12-50A non iso.

The Victron Orion XS 12/12-50A has been designed from the ground up to meet the requirements of modern electrical systems where both performance and battery protection are essential. It can be used as both a DC-DC battery charger and an adjustable power supply, making it highly versatile for marine and mobile installations.

The integrated engine shutdown detection function allows the charger to automatically detect when the alternator is active and charge only while the engine is running. This is particularly valuable in vehicles equipped with smart alternators, where the charging voltage varies according to electrical load and driving conditions.

Using the free VictronConnect app, you can easily configure charging parameters, monitor operating status, and update the firmware wirelessly via Bluetooth. The Orion XS offers fully programmable charging profiles, support for lead-acid and lithium batteries, and integration with Victron GX systems and the VRM portal for advanced monitoring and remote control.

For marine installations, the Orion XS is particularly well suited because of its VHF-friendly design. The unit is engineered to minimize electromagnetic interference, helping ensure reliable operation alongside VHF radios and other sensitive communication equipment on board. This makes it an excellent choice for sailboats, powerboats, and commercial vessels where reliable communication is essential.

Its high efficiency of up to 98.5% minimizes energy losses and heat generation, while the fanless design ensures completely silent operation.

• Up to 50 A charging current
• Efficiency of up to 98.5%
• Bluetooth connectivity via VictronConnect
• Designed for Euro 5 and Euro 6 alternators
• IP65-rated
• Full support for lead-acid and lithium batteries
• VHF-friendly for marine installations
• Fanless and completely silent operation
• VE.Direct and GX integration
